Acustic Analysis Lavapiés

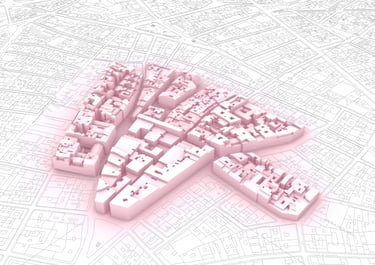

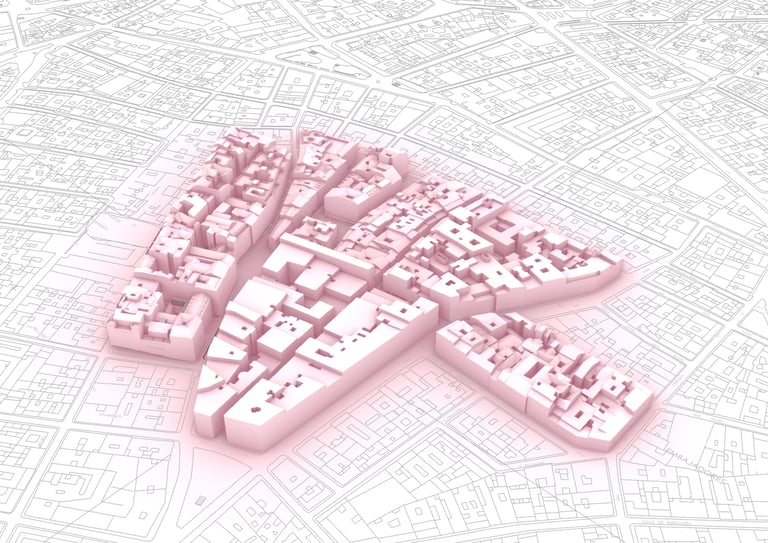

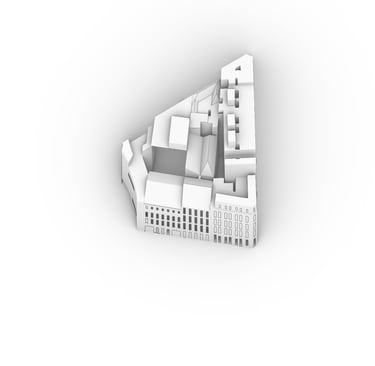

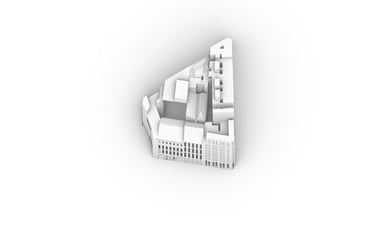

This project aimed to analyze the impact of sound within residential interiors of the selected urban blocks in the Lavapiés neighborhood of Madrid

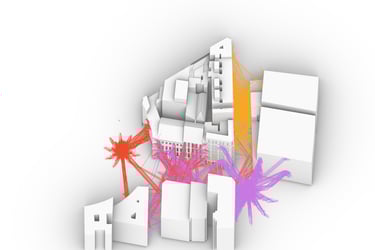

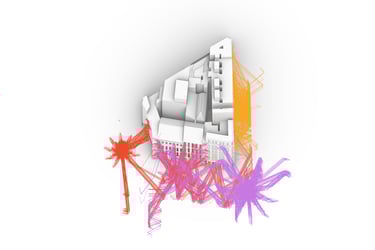

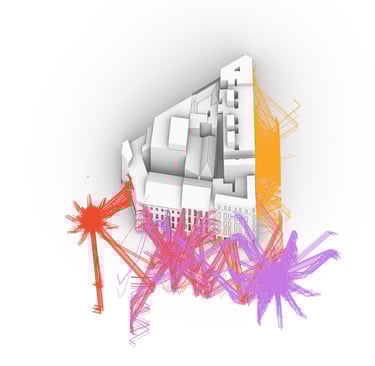

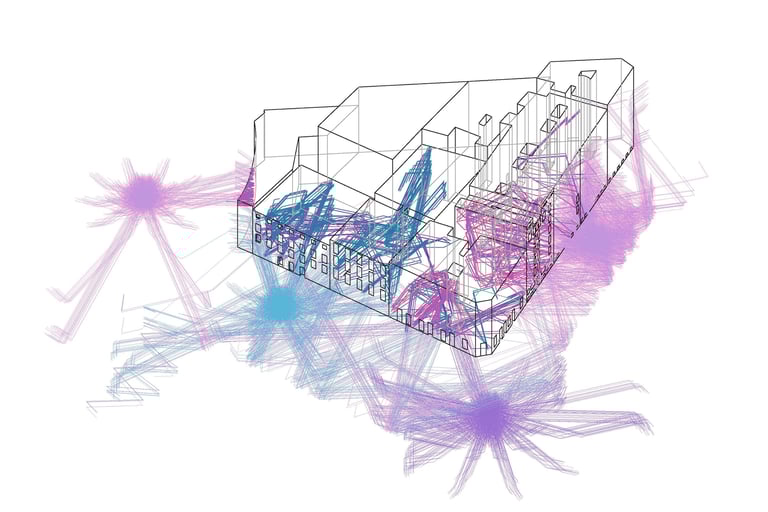

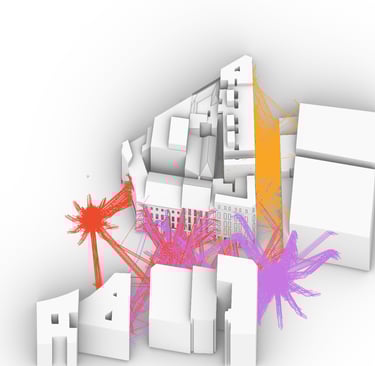

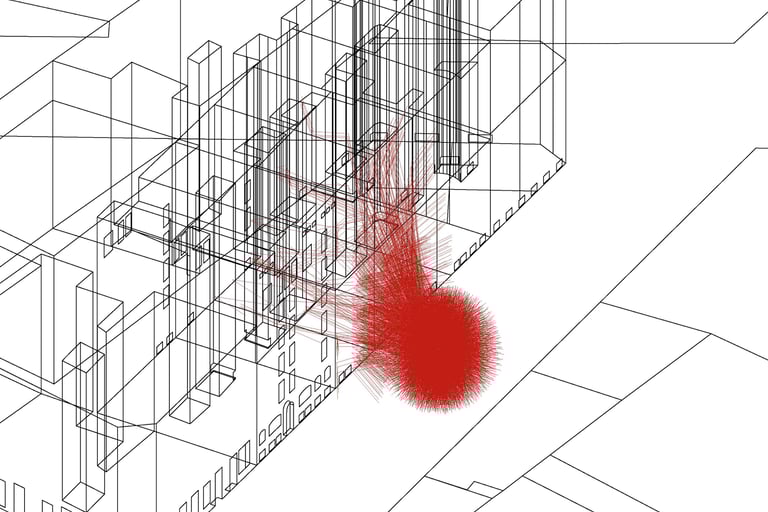

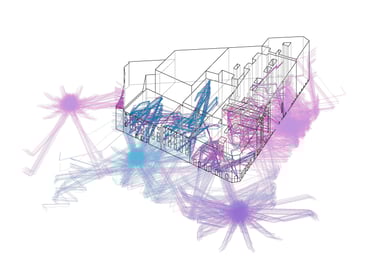

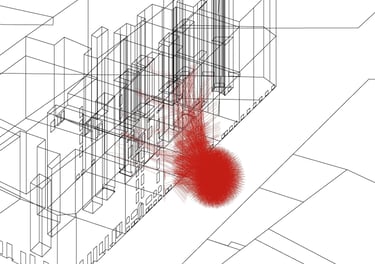

To create a realistic simulation, sound sources are positioned at road level, aligned with vehicle height. Acoustic rays, representing sound waves, are either blocked or redirected upon striking building façades. Additionally, rays that intersect façade openings are extended within the visualization to assess their impact on interior spaces.
